2021-03-04

Due to its high hardness, heat resistance, corrosion resistance, wear resistance, excellent strength and toughness, tungsten carbide can be widely applied to machinery parts. The physical properties of the cemented carbide are 3 times higher than steel. It can be made into a variety of products. The commonly used tungsten carbide products include carbide plates, rods, dies, rotary burr, wear parts, etc.

Tungsten carbide rod

Carbide rod is a new technology and new material, mainly used in the manufacture of metal cutting tools, wood, plastics and other industries that require hardness and wear resistance & corrosion resistance. It has stable mechanical properties, easy welding, high wear resistance and high impact resistance.

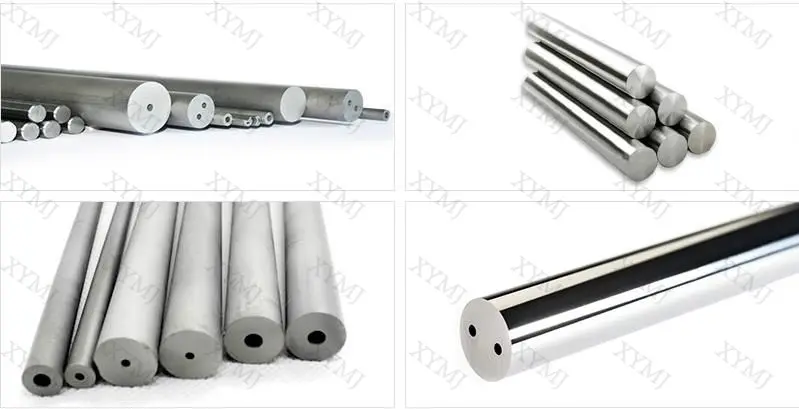

carbide rod

Applications

Cemented carbide rods are mainly used for drill bits, end mills, and reamers. It can also be suitable for cutting, stamping and measuring tools. It is Applicable in paper-making, packaging, printing, and non-ferrous metal processing industries.

Grades YG6, YG8, YG6X are more wear-resistant than MK6. It can be used for hard wood, processing aluminum alloy profiles, brass rods and cast iron, etc. YG10 is resistant to abrasion, knocking, and is used for processing hard wood, soft wood, ferrous metals and non-ferrous metals.

Tungsten carbide rods can be used not only for cutting and drilling tools but also can be applied as input needles, various roll wear parts and structural materials. In addition, it can be widely used in many fields, such as machinery, chemical industry, petroleum, metallurgy, electronics and defense industries.

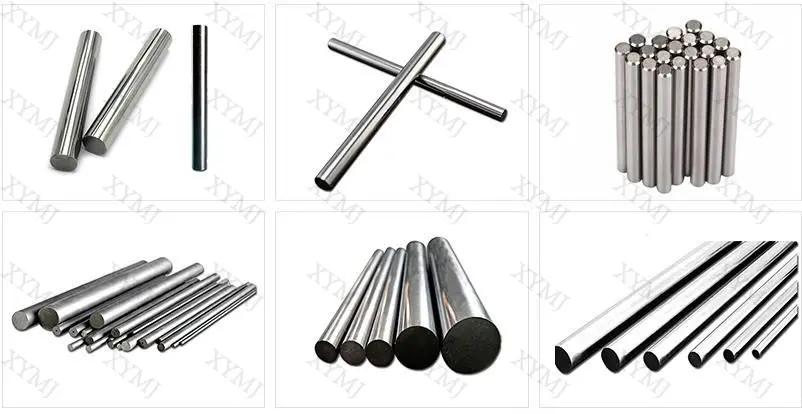

tungsten carbide rod

Process flow

The main process flow includes powder milling formula according to application requirements → wet milling → mixing → crushing → drying → sieving → adding forming agent → re-drying → sieving to obtain a mixture → granulating → pressing → forming → low-pressure Sintering → Forming (blank) → Cylindrical grinding and fine grinding (the carbide blank does not have this process) → Detecting dimensions → packaging → warehousing.

Tungsten carbide Plate

The main alloy ingredients of the carbide plate are WC and CO, and the ingredients of WC and CO are different according to various applications. It has good durability and impact resistance, which can be used in hardware and standard stamping molds. The tungsten carbide plates must be strictly checked, guaranteeing without any injuries, such as pores, bubbles, cracks, etc.

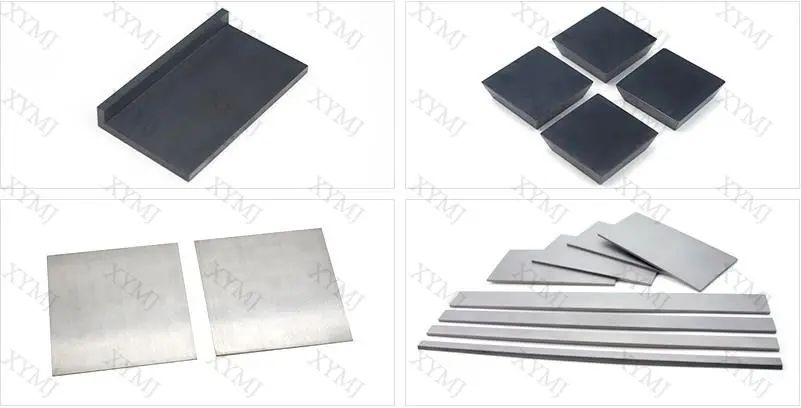

carbide plate

Features

The carbide plate has high hardness, good wear resistance, high strength and toughness, heat resistance, corrosion resistance and a range of excellent properties.

1. Excellent thermal stability and high-temperature resistance.

2. Keeping high mechanical temperature.

3. Good thermal shock resistance.

4. High heat transfer.

5. Excellent oxidation control.

6. Corrosion resistance at high temperatures.

7. Excellent anti-chemical corrosion resistance.

8. High Wear resistance.

9. Long service life

Applications

Carbide plate is widely used in electronic industries, motor rotors, stators, LED lead frames, EI silicon steel, etc. It has high density, high hardness and wear resistance and is an excellent material as a variety of tool parts. Carbide plate is suitable for the manufacturing of various metals.

Grades

Grade

Density
  (g/cm3)

Hardness
  (HRA)

TRS
  (Mpa)

YG6

14.9

91.0

1800

YG6X

14.8

92.0

1800

YKM6A

14.7

92.5

1800

YG8

14.8

90.0

1950

YT5

13

90.8

1900

YT14

11.5

91.5

1500

YT15

11.3

91.8

1450

YW1

13.1

91.5

1600

YW2

13.1

91.0

1600

YS25

12.8

91.5

1900

YC30S

12.8

91.0

2000

ZP35

12.8

91.0

2000

YC40

13.2

90.0

1850

Tungsten carbide rotary burr

The tungsten carbide rotary burr can be used to process cast iron, cast steel, carbon steel, alloy steel, stainless steel, hardened steel, copper and aluminum. Since the carbide rotary burr is hand-controlled on a high-speed rotation, the pressure and feed speed are determined to the service life and cutting effect of the tool.

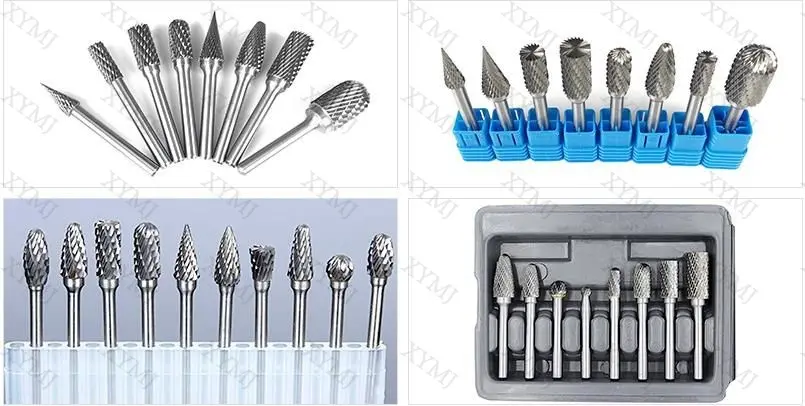

carbide rotary burrs

Advantages

1. It can process iron, cast steel, carbon steel, alloy steel, stainless steel, copper, aluminum, etc and non-metals such as marble, jade, bone. Processing hardness can reach HRA ≥ 85.

2. Basically, it can replace a small grinding wheel and no dust pollution.

3. High production efficiency. The processing efficiency is more than ten times higher than the handmade file and is nearly ten times that of the small grinding wheel with the handle.

4. Good processing quality and high finish. It can be processed in various high-precision shape mold cavities.

5. Long service life. Durable is ten times higher than that of high-speed steel tools, which is more than 200 times higher than small grinding wheels.

6. Easy to use, safe and reliable.

7. Comprehensive processing costs can be decreased by several times.

Applications

1. Finishing various metal mold cavities such as shoe molds, etc.

2. Various metals and non-metallic process engraving, craft gift engraving.

3.Clean up the feed, burrs, weld of the casting, forging, welding in machine casting factories, shipyards, automotive plants, etc.

4.Chamfered rounds and trench processing, cleanup pipelines, finishing pipelines, and mechanical plants, repair shops, etc.

5.Decoration of the impeller flow path in the automobile engine factory.

Tungsten carbide Dies

The carbide dies have several tens of times longer service life than steel molds. The carbide mold has high hardness, high strength, corrosion resistance, high-temperature resistance and small expansion coefficient, generally composed with tungsten cobalt.

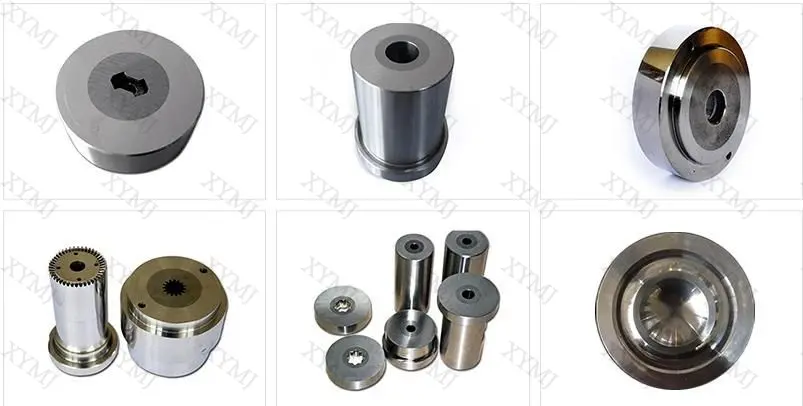

carbide dies

Grades and production technology

The grades mainly include YG3, YG6, YG6X.YG8.YG15, YG20, YG20C, YG25 and HU20, Hu222, HWN1, etc.

Tungsten carbide dies to adopt native carbide material with special low-pressure sintering processes. The toughness will be better than routine production and the service life will increase by 3-5 times.

Classification

The carbide mold can be divided into three categories according to the applications.

1. Tungsten brushed mold, which is the most used carbide mold. The main grades include YG8, YG6, YG3, followed by YG15, YG6X, YG3X, a new grade YL used for high-speed brushes.

2. Cold rolling die & shaped mold, the main grades include YC20C, YG20, YG15, CT35, YJT30 and MO15.

3. Nonmagnetic alloy molds for magnetic materials production, such as YSN series including 20, 25, 30, 35, 40 and steel knot-free magnetic die tags TMF.

Tungsten Carbide Ball

The carbide ball is a powder metallurgy product, the main component of which is metal carbide (WC, TiC) micron powder featuring a high hardness refractory.

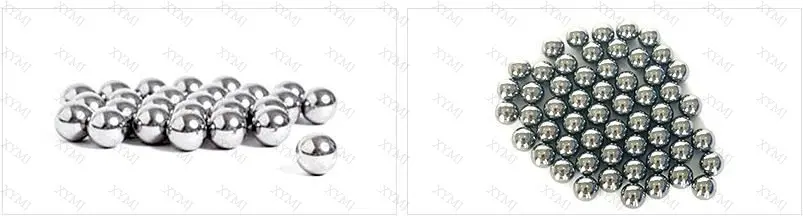

tungsten carbide ball

Classifications, grades and features

Tungsten carbide ball mainly includes blanks ball, refined balls, punch balls, bearing balls, Monel balls, metering balls, scratch balls, etc.

The grades include YG6, YG6x, YG8, YG13, YG20, YN6, YN9, YN12, YT5, YT15.

It has high hardness, excellent wear-resistant corrosion-resistant, anti-bending, and can be used in a harsh environment. It can replace all steel bead products. The hardness of the carbide ball is ≥90.5.

Applications

Carbide balls are widely used in precision bearing, instrument, pen production, spraying machine, water pump, mechanical fitting, sealing valve, brake pump, striking hole, oil field, Hydrochloric acid laboratory, hardness measuring instrument, fishing gear, etc.

Summary

The tungsten carbide products can be used as cutting tools, mining tools, wear parts, widely applicable for military, aerospace, machining, metallurgy, oil drilling, etc. Wide application and high-quality stability greatly increase the demands for carbide products.
