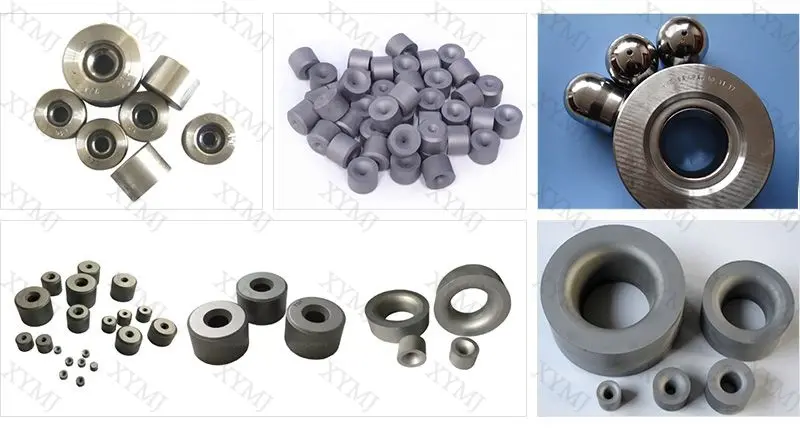

Tungsten Carbide Wire Drawing Dies Manufacturer
- Made from 100% virgin material of WC and Co. It have good wear resistance, high bending strength.
- Tungsten carbide wire drawing dies are a good economical choice for steel wire and other large-size wire drawing applications
- Applications for drawing wire, tubes, rods. Type as S11, WTA. S13, for steel wire drawing ,drawing aluminum wire, copper wire drawing, etc.
Factory Advantages
1. More than 20 years of Experience
2. Adopting advanced production technology with high-precision machines
3. Strict QC management system with advanced inspecton equipment
4. Special-designed packing boxes and tubes
5. Various shipping methods for choosing
6. Best after-sale services
Why Choose Tungsten Carbide Wire Drawing Die?
Wire drawing dies are usually used to shorten the diameter of various ferrous and non-ferrous metal rods and wires. Applications include various grades of low/medium/high carbon steel, steel alloys, stainless steel, welding wire, etc.
Carbide mold & dies is an excellent choice for manufacturing ferrous metal rod size wires. They are also ideal for short trial runs. Mirror polishing and smooth lead wire is used to ensure the long service life and wire drawing.
Advantages Of XYMJ Tungsten Carbide Wire Drawing Dies
1. excellent wear-resistance, adopting GB class A cemented carbide mould core with strength over 2200N/mm 3.
2. More wire rods can be drawn: the size is 20% longer than common mould, which makes XYMJ wire drawing dies can work longer.
3. Tightening connected with the steel jacket: adopting advanced cold bushing technology and interference bushing craft, they are tightening connected with the steel jacket.
Grade List
|
Chinese Grade |
Equal to ISO Category Number | Chemical Composition | Physical Mechanical Properties | |||
| WC | Co | Density | Bend Strength | Hardness | ||
| % | % | G/Cm3 | N/mm2 | HRA | ||
| YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
| YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
| YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
| YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
| YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
| YG10X | K40 | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 |
| YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
| YG20 | K30 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 |
| YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
| YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |
