Carbide Roller
Tungsten Carbide Roller
Tungsten Carbide Roll
Carbide Roller
Tungsten Carbide Roller
Tungsten Carbide Roll

Tungsten Carbide Roller Manufacturer

  • Used on the stretch-reducing mill for bars, thread steel bars and common wire with the durability 10 to 20 times higher compared to common steel roller. Applied for reinforcement wire cold rolling and forming.
  • Reducing effectively the production cost and improving the quality.
  • The material of roll blanks is sintered in the HIP furnace, 100% virgin material.
Share to

Factory Advantages

1. More than 20 years of experience
2. Adopting advanced production technology with high-precision machines
3. Strict QC management system with advanced inspection equipment
4. Special-designed packing boxes and tubes
5. Various shipping methods for choosing
6. Best after-sale services



Why Choose Tungsten Carbide Roller?

Tungsten carbide roller has superior performance, stable quality, high precision, good wear resistance and high impact resistance. Carbide roller has high hardness, which is not affected by environmental or external temperature change, therefore it can be used in an extremely hot or cold environment.

1. Excellent surface mirror finish.
2. High hardness, round HRA 87 or even to HRA91.
3. High wear resistance and corrosion resistance.
4. The service life of tungsten carbide is 50 times longer than common steel tools.

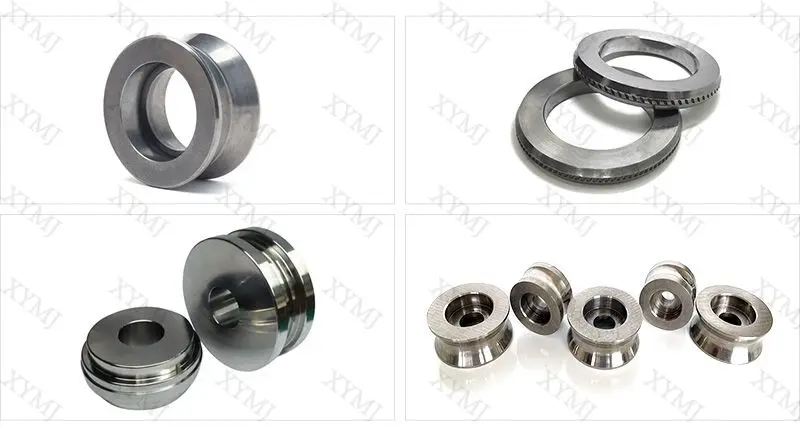

carbide roller

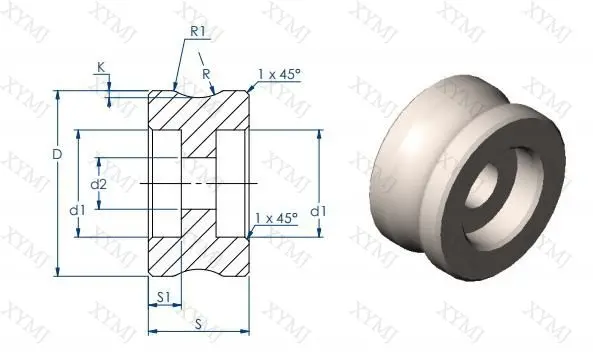

Mold Parameter Diagram



parameter diagram of carbide roller

Tungsten Carbide Roller

Dimension
OD ID H
140-500mm 80-300mm 10-250mm



Grade I Special request
OD ±0.02 ±0.05 ±0.10 ±0.15
ID ±IT5 ±IT6 ±IT7 ±IT8
H ±0.015 ±0.050 ±0.100 ±0.25



Tungsten Carbide Roller   Tungsten Carbide Roller



Name Dimension
D d H
Two-groove rolls 180 110 55
Two-groove carved rolls 180 110 55


Grade List





Chinese Grade



Equal to ISO Category Number

Chemical Composition

Physical Mechanical Properties

WC

Co

Density

Bend Strength

Hardness

%

%

G/Cm3

N/mm2

HRA

YG3

K01

96.5-97

3

14.9-15.3

≥1180

≥91.0

YG6X

K10

93.5

6

14.8-15.1

≥1420

≥92

YG6

K20

94

6

14.7-15.1

≥1600

≥91

YG8

K20-K30

92

8

14.5-14.9

≥1600

≥90

YG10

K40

90

10

14.3-14.7

≥1900

≥89

YG10X

K40

89

10

14.3-14.7

≥2200

≥89.5

YG15

K30

85

15

13.9-14.2

≥2100

≥87

YG20

K30

80

20

13.4-13.7

≥2500

≥85.5

YG20C

K40

80

20

13.4-13.7

≥2200

≥85.5

YG30

G60

70

30

12.8

≥2750

≥82

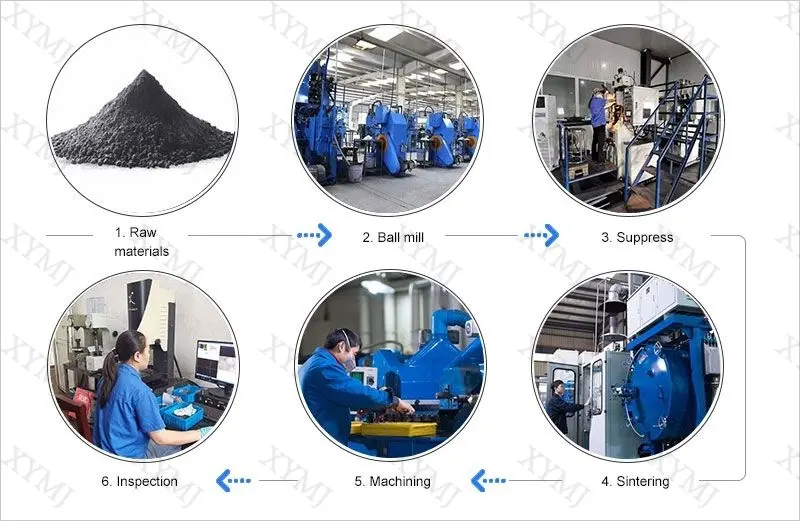

Production Process

Tungsten Carbide Roller

Factory Workshop with Advanced Machine



XYMJ owns a series of high-precision grind machines, including flat grinding machines, OD and ID machines, Centerless grinding machines. Also we have CNC machines, EDM, Wire-cutting machines and drilling machines etc. In order to ensure the quality of the finished products, a very strict QC management system has been adopted, OEM/ODM options available with competitive price.
