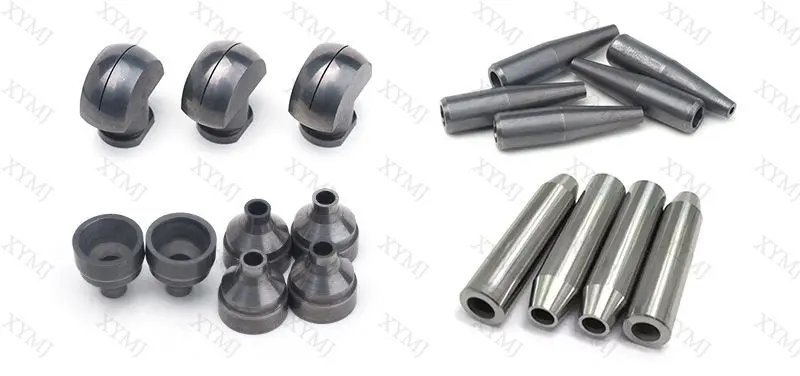

Tungsten Carbide Nozzle Manufacturer
- A nozzle is a device designed to control the direction or characteristics of a flow (especially to increase velocity) as it exits (or enters) an enclosed chamber or pipe via an orifice.
- For nozzles, tungsten carbide nozzle is the most rugged and durable and provides the best value.
Factory Advantages
1. More than 20 years of experience
2. Adopting advanced production technology with high-precision machines
3. Strict QC management system with advanced inspection equipment
4. Special-designed packing boxes and tubes
5. Various shipping methods for choosing
6. Best after-sale services
Features of tungsten carbide
1. High hardness
2. High abrasion and corrosion resistance.
3. HIgh-pressure resistance
4. High-temperature resistance
5. Products with advanced equipment and perfect workmanship
Dimension(mm)
| Type | Dimension (mm) | |||
| φC ±0.15 | φA ±0.15 | φB±0.15 | φD ±0.15 | |
| XJO1-64 | 6.4 | 20.3 | 15.8 | 6.4 |
| XJO1-71 | 7.1 | 20.3 | 15.8 | 7.1 |
| XJO1-86 | 8.6 | 20.3 | 15.8 | 8.6 |
| XJO1-94 | 9.4 | 20.3 | 15.8 | 9.4 |
| XJO1-109 | 10.9 | 20.3 | 15.8 | 10.9 |
| XJO1-117 | 11.7 | 20.3 | 15.8 | 11.7 |
| XJO1-127 | 12.7 | 20.3 | 15.8 | 12.7 |
| XJO1-142 | 14.2 | 20.3 | 15.8 | 14.2 |
| Type | Dimension (mm) | ||
| φB | φA(φD) | φC | |
| XJ02-64 | 6.4 | 18.8 | 14.73 |
| XJ02-71 | 7.1 | 18.8 | 14.73 |
| XJ02-86 | 8.6 | 18.8 | 14.73 |
| XJ02-94 | 9.4 | 18.8 | 14.73 |
| XJ02-109 | 10.9 | 18.8 | 14.73 |
| XJ02-117 | 11.7 | 18.8 | 14.73 |
| XJ02-127 | 12.7 | 18.8 | 14.73 |
| Type | Dimension (mm) | ||||||||
| φA ±0.25 | φB ±0.25 | φC ±0.25 | φD ±0.20 | φE ±0.20 | F ±1 | G ±1 | M ±1 | K ±0.5 | |
| XP01-1 | 24.5 | 30.0 | 5.0 | 9.0 | 18.0 | 50.0 | 69.0 | 21.0 | 130.0 |
| XP01-2 | 24.5 | 30.0 | 8.0 | 12.5 | 20.0 | 50.0 | 69.0 | 21.0 | 140.0 |
| XP01-3 | 24.5 | 30.0 | 10.0 | 13.5 | 21.0 | 50.0 | 69.0 | 21.0 | 170.0 |
| XP01-4 | 24.5 | 30.0 | 13.0 | 19.5 | 27.0 | 50.0 | 69.0 | 21.0 | 226.0 |
| XP01-5 | 30.0 | 36.0 | 6.5 | 12.5 | 19.5 | 54.0 | 70.0 | 20.0 | 130.4 |
| XP01-6 | 30.0 | 36.0 | 8.0 | 12.5 | 12.5 | 54.0 | 70.0 | 20.0 | 141.0 |
| XP01-7 | 30.0 | 36.0 | 11.0 | 15.0 | 12.5 | 55.0 | 69.0 | 21.0 | 200.0 |
| Type | Dimension (mm) | ||||||
| φA ±0.25 | φB ±0.25 | φC ±0.20 | φD ±0.20 | φE ±0.25 | F ±2 | K ±0.5 | |
| XP02-1 | 32.0 | 25.0 | 6.2 | 8.0 | 16.0 | 45.0 | 78.0 |
| XP02-2 | 32.0 | 25.0 | 8.0 | 10.0 | 18.0 | 45.0 | 78.0 |
| XP02-3 | 32.0 | 25.0 | 11.0 | 13.0 | 21.0 | 45.0 | 78.0 |
| XP02-4 | 38.0 | 32.0 | 6.2 | 6.2 | 16.0 | 45.0 | 80.0 |
| XP02-5 | 38.0 | 32.0 | 8.0 | 8.0 | 18.0 | 45.0 | 80.0 |
Professional Tungsten Carbide Manufacturer - XYMJ
XYMJ has more than 20 years of experience in researching and manufacturing tungsten carbide products such as carbide molds & dies, bushings, valve seats, nozzles, inserts & cutting tools, carbide rods and bars, and other customized tungsten carbides wear parts. High-quality carbide products rely on 100% virgin raw materials and advanced wet-milling, pressing machines and sintering furnaces. We put emphasis on every production process. We have high-precision grind machines, skilled workers to control the very high precision of each carbide part, with strict QC management, special-designed packing boxes and tubes to ensure the safety of the customized carbide parts, and various shipping methods.

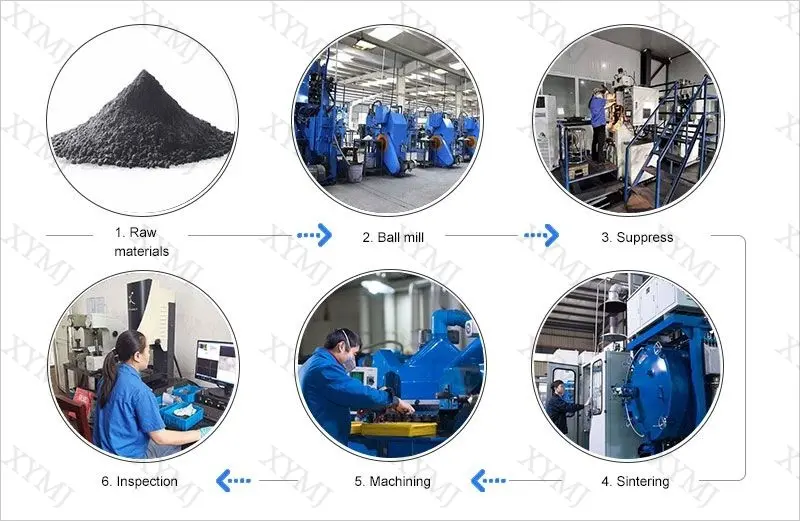

Production Process
