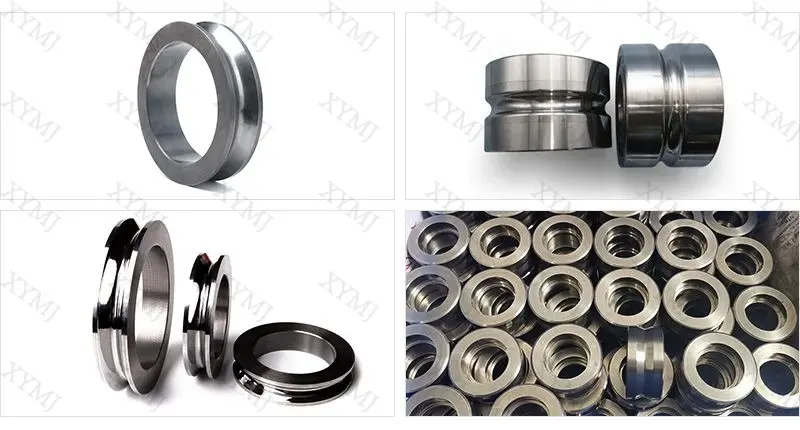

Customized Tungsten Carbide Guide Wheel
- 10 - 20 times a lifetime longer than a steel roller. Saving maintenance time and cost.
- Improved mechanical properties.
- Good surface finish and corrosion resistance.
- V – U and custom straightening grooves.
Factory Advantages
1. More than 20 years of experience
2. Adopting advanced production technology with high-precision machines
3. Strict QC management system with advanced inspection equipment
4. Special-designed packing boxes and tubes
5. Various shipping methods for choosing
6. Best after-sale services
Features of tungsten carbide :
1. High hardness
2. High abrasion and corrosion resistance.
3. HIgh-pressure resistance
4. High-temperature resistance
5. Products with advanced equipment and perfect workmanship
Grade List
|
Chinese Grade |
Equal to ISO Category Number | Chemical Composition | Physical Mechanical Properties | |||
| WC | Co | Density | Bend Strength | Hardness | ||
| % | % | G/Cm3 | N/mm2 | HRA | ||
| YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
| YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
| YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
| YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
| YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
| YG10X | K40 | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 |
| YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
| YG20 | K30 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 |
| YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
| YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |

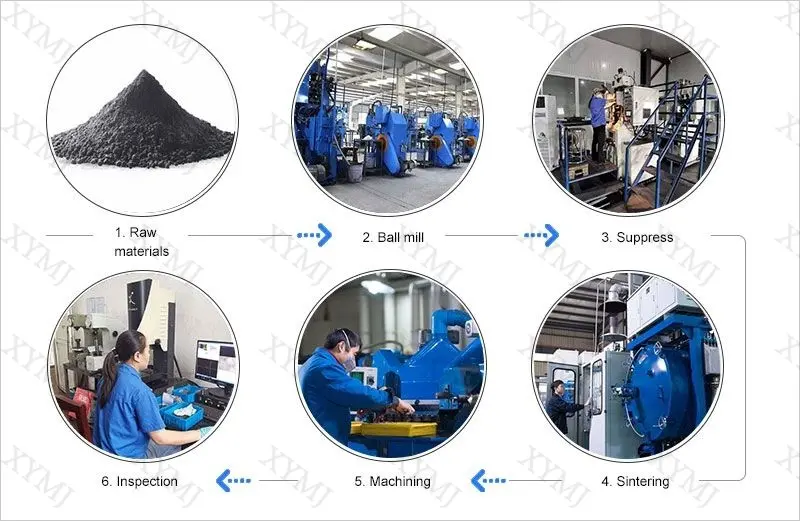

Production Process
Industry Solutions
