  • For nozzles, tungsten carbide nozzle is the most rugged and durable and provides the best value.
  • 1. Sufficient strength and rigidity.
  • 2. Good impact toughness.
  • 3. Abrasion resistance.
  • 4. Corrosion resistance.
  • 5. Long service life.
  • 6. Anti-compression.
  • 7. Excellent thermal shock resistance.
  • 8. Good sealing character.
Share to

Why Choose Tungsten Carbide Nozzle
When Inevitable to rough handling and media used for cutting abrasives (glass beads, steel shots, minerals, or cinder), carbide nozzles have the advantages of being more economical and longer service life. Traditionally, tungsten carbide is the best choice for the material of the nozzles.


Tungsten carbide nozzle is widely used in surface treatment, sandblasting, painting, electronics, chemical processes and other industries with different applications such as wire straightening, wire guides, and other aspects.


carbide nozzle





Mold Parameter Diagram

parameter diagram of carbide nozzle



Dimensions of Oil Nozzle (mm)
D H d
25.21 34.8 7.95
25.21 34.8 8.74

Customized Tungsten Carbide Nozzle

Type Dimension (mm)
φC ±0.15 φA ±0.15 φB±0.15 φD ±0.15
XJO1-64 6.4 20.3 15.8 6.4
XJO1-71 7.1 20.3 15.8 7.1
XJO1-86 8.6 20.3 15.8 8.6
XJO1-94 9.4 20.3 15.8 9.4
XJO1-109 10.9 20.3 15.8 10.9
XJO1-117 11.7 20.3 15.8 11.7
XJO1-127 12.7 20.3 15.8 12.7
XJO1-142 14.2 20.3 15.8 14.2



Customized Tungsten Carbide Nozzle

Type Dimension (mm)
φB φA(φD) φC
XJ02-64 6.4 18.8 14.73
XJ02-71 7.1 18.8 14.73
XJ02-86 8.6 18.8 14.73
XJ02-94 9.4 18.8 14.73
XJ02-109 10.9 18.8 14.73
XJ02-117 11.7 18.8 14.73
XJ02-127 12.7 18.8 14.73



Customized Tungsten Carbide Nozzle

Type Dimension (mm)
φA ±0.25 φB ±0.25 φC ±0.25 φD ±0.20 φE ±0.20 F ±1 G ±1 M ±1 K ±0.5
XP01-1 24.5 30.0 5.0 9.0 18.0 50.0 69.0 21.0 130.0
XP01-2 24.5 30.0 8.0 12.5 20.0 50.0 69.0 21.0 140.0
XP01-3 24.5 30.0 10.0 13.5 21.0 50.0 69.0 21.0 170.0
XP01-4 24.5 30.0 13.0 19.5 27.0 50.0 69.0 21.0 226.0
XP01-5 30.0 36.0 6.5 12.5 19.5 54.0 70.0 20.0 130.4
XP01-6 30.0 36.0 8.0 12.5 12.5 54.0 70.0 20.0 141.0
XP01-7 30.0 36.0 11.0 15.0 12.5 55.0 69.0 21.0 200.0



Customized Tungsten Carbide Nozzle



Type Dimension (mm)
φA ±0.25 φB ±0.25 φC ±0.20 φD ±0.20 φE ±0.25 F ±2 K ±0.5
XP02-1 32.0 25.0 6.2 8.0 16.0 45.0 78.0
XP02-2 32.0 25.0 8.0 10.0 18.0 45.0 78.0
XP02-3 32.0 25.0 11.0 13.0 21.0 45.0 78.0
XP02-4 38.0 32.0 6.2 6.2 16.0 45.0 80.0
XP02-5 38.0 32.0 8.0 8.0 18.0 45.0 80.0

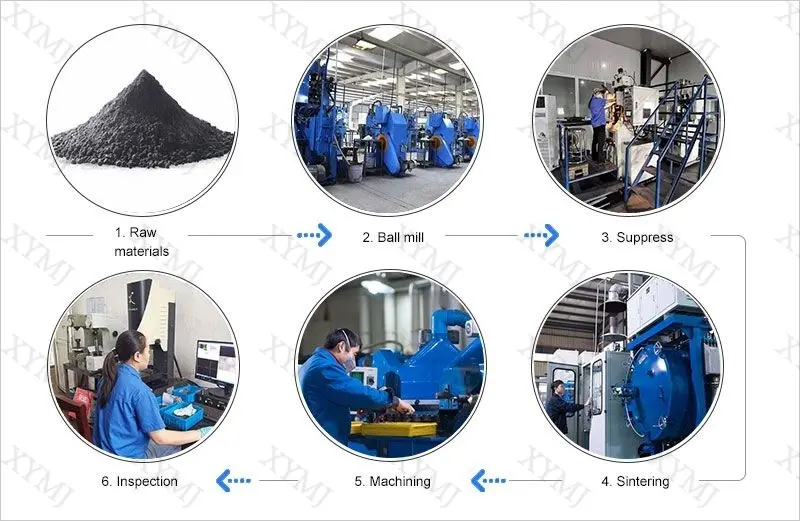

Production Process



Contact US

Please Upload Compressed Package

zip / rar / 7z

Contact

+86-18708375825
No.6,B2 Road,Bancang Industrial Zone,Sichuan,China

Company

Zigong Xingyu Cemented Carbide Dies&Tools Co.,Ltd is a professional supplier of tungsten carbide mould/dies and all kinds of customized tungsten carbide wear parts. Which integrates research & development, production, marketing and services.
